Project Summary :

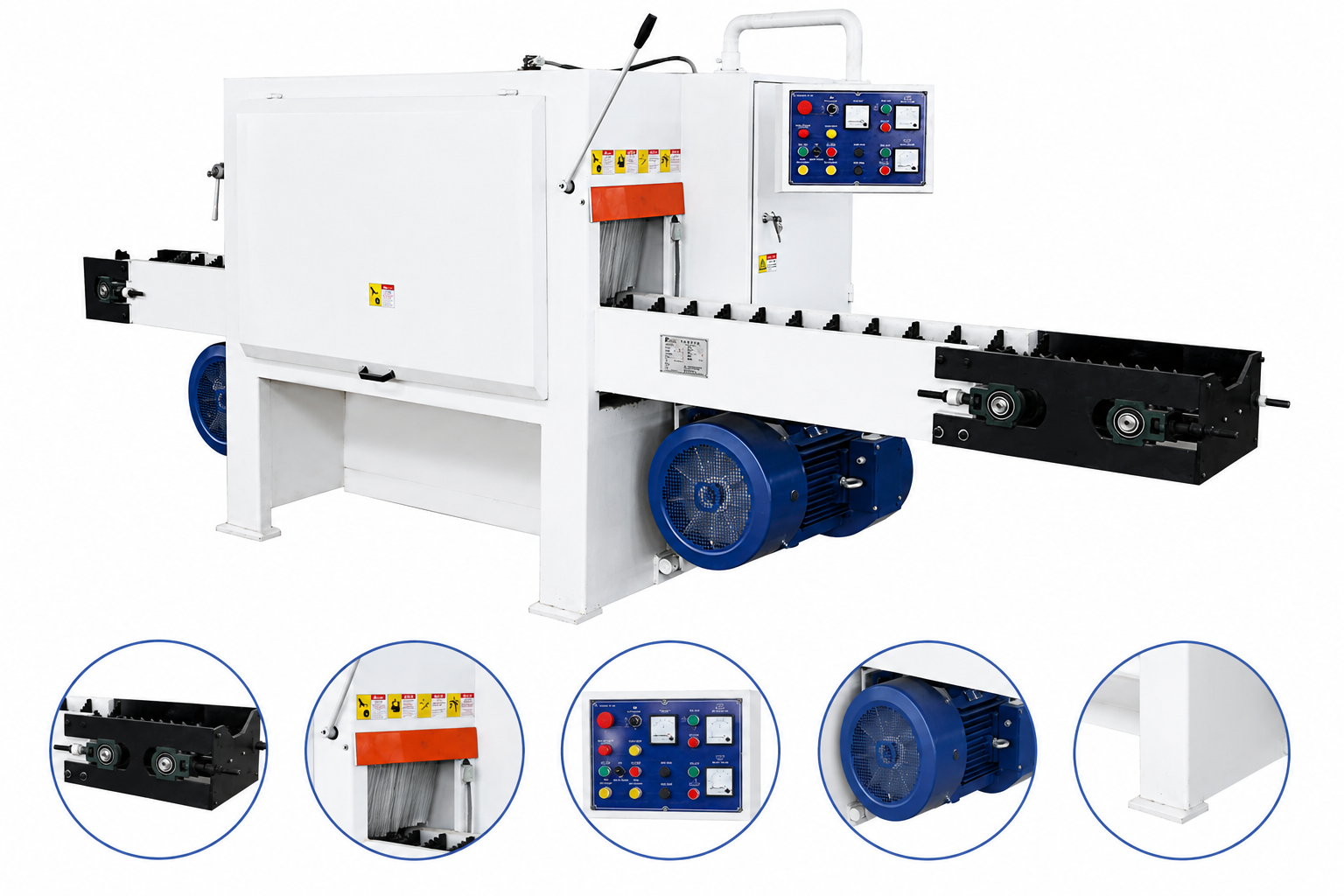

The Omkar Round Log Multi Blade Saw is a high-performance woodworking machine designed to convert round logs into multiple timber sections in a single operation with maximum precision and efficiency. Equipped with multiple high-quality saw blades, a powerful motor, and a heavy-duty frame, it delivers smooth, accurate cuts while increasing timber recovery and reducing material wastage.
Built for continuous industrial use, the machine provides stable operation, low maintenance, and reliable performance even under demanding workloads. It is widely used in sawmills, timber processing plants, furniture manufacturing units, pallet production, and other woodworking industries that require high-speed and precise log processing.
Machine Specifications :
| MODEL | MJY142V-35 | MJY142V-40 | MJY142V-45 | MJY142V-50 |
|---|---|---|---|---|
| Max. Width | 350 mm | 400 mm | 450 mm | 500 mm |
| Min. Width | 140 mm | 150 mm | 180 mm | 200 mm |
| Min. Length | 900 mm | 1200 mm | 1500 mm | 1650 mm |
| Max. Length | N/A | N/A | N/A | N/A |
| Total Power | 110 KW | 133 KW | 154 KW | 184 KW |
| Feeding Speed | 0–12 m / Min | 0–12 m / Min | 0–12 m / Min | 0–12 m / Min |
| Overall Dimensions | 4800 x 1950 x 1750 | 5100 x 2050 x 1850 | 5400 x 2160 x 1950 | 6000 x 2250 x 2100 |
| Weight | 3200 KG | 3500 KG | 3800 KG | 4200 KG |
Image Parts :
Double Anti-Rebound
V-Shaped Converyor Belt
Strengthen The Chain
Continuously Variable Speed
Axis Water Spray
01
Log Selection & Preparation
Round logs are selected and prepared for smooth processing.
02
Machine Setup & Blade Alignment
Multiple blades are aligned for precise and efficient cutting.
03
Multi Blade Cutting & Inspection
Logs are cut into multiple pieces and quality checked.
04
Final Packaging & Dispatch
Finished timber is packed securely for safe delivery.
Our Client Review About Project :
A Round Log Multi Blade Saw is designed to cut round logs into multiple timber sections in a single operation, improving production speed, cutting accuracy, and material utilization.
The machine is ideal for processing round logs, hardwood, softwood, and other solid timber used in furniture manufacturing, construction, pallet production, and sawmills.
Omkar's Round Log Multi Blade Saw delivers high productivity, smooth cutting performance, reduced wood wastage, durable construction, and consistent results, making it an excellent choice for modern wood processing industries.
