Project Summary :
The Omkar Board Edger is a high-performance woodworking machine designed to trim rough and uneven edges of wooden boards with exceptional accuracy. It produces straight, smooth, and uniformly sized boards, improving material quality and reducing wood wastage.
Built with a heavy-duty frame, precision saw blades, and a reliable feeding system, the machine ensures stable operation and consistent cutting performance even during continuous industrial use. It is widely used in sawmills, timber processing units, furniture manufacturing, and woodworking industries where precision edge trimming and high productivity are essential.
Machine Specifications :
| Model | MJFI41-0450 | MJFI41-0750 | MJFI41-0580 | MJFI41-0780 |
|---|---|---|---|---|
| Max. Height | 40 mm | 70 mm | 50 mm | 70 mm |
| Min. Height | 10 mm | 20 mm | 10 mm | 20 mm |
| Max. Width | 500 mm | 500 mm | 800 mm | 800 mm |
| Min. Length | 450 mm | 500 mm | 450 mm | 600 mm |
| Max. Length | N/A | N/A | N/A | N/A |
| Total Power | 16.5 / 20 KW | 24.2 / 32.2 KW | 33 KW | 33 KW |
| Feeding Speed | 0–20 m/min | 0–20 m/min | 0–20 m/min | 0–20 m/min |
| Overall Dimensions | 2500 x 1100 x 1250 | 2600 x 1200 x 1350 | 2800 x 1100 x 1250 | 2800 x 1200 x 1350 |
| Weight | 1000 KG | 1200 KG | 1300 KG | 1500 KG |

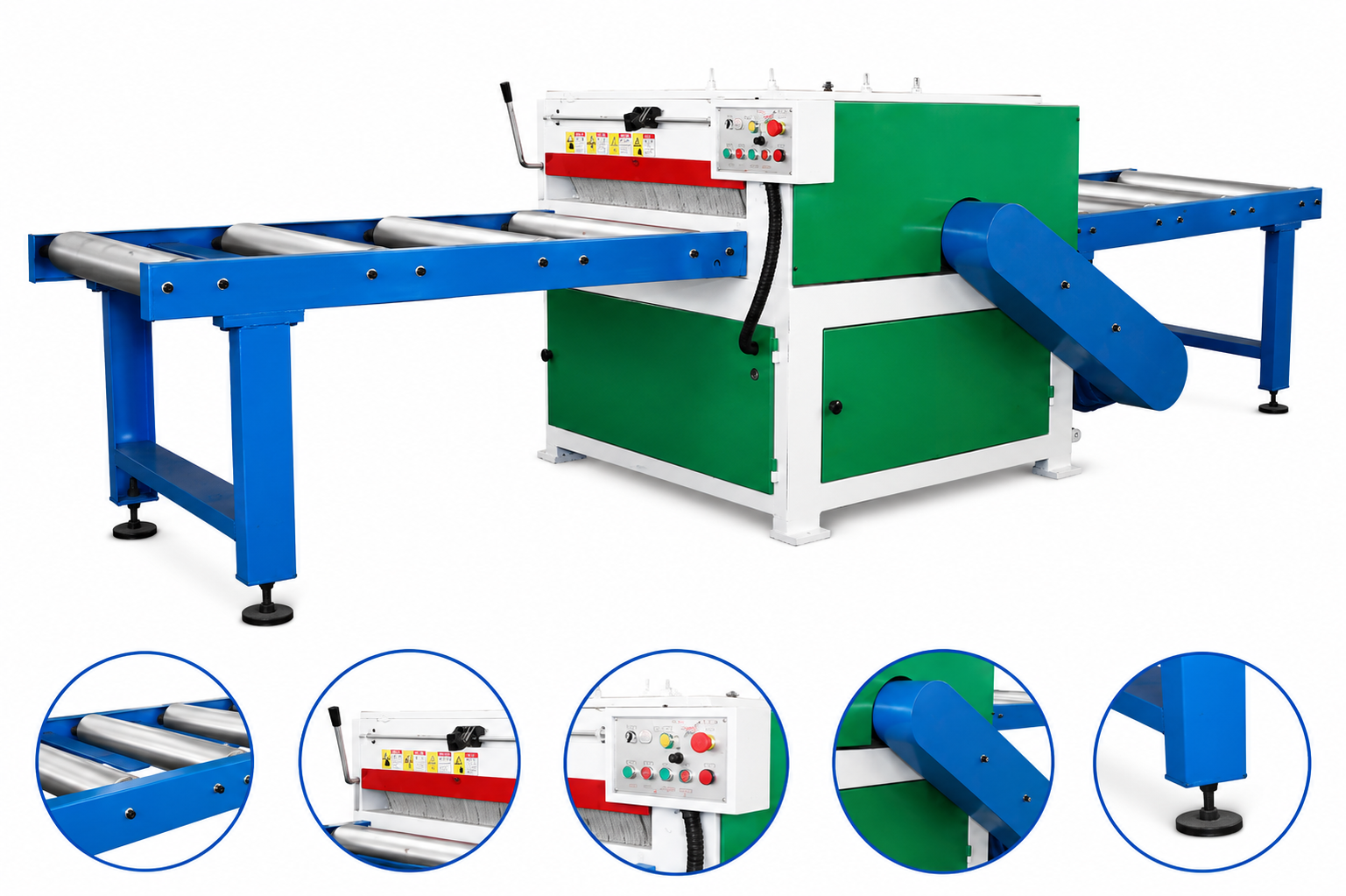

Image Parts :
Spindle Double Support
Double Anti-Rebound
Bounce Pressure Roller
Strenghten The Chain
Continuously Variable Speed
01
Timber Selection & Preparation
Premium timber is selected and prepared for precise ripping.
02
High-Speed Ripping & Inspection
Boards are cut accurately and inspected for quality and size.
03
Final Quality Check & Dispatch
Finished products are checked, packed, and delivered safely.
Our Client Review About Project :
A Board Edger Machine is used to trim rough or uneven edges of wooden boards, producing straight, uniform, and accurately sized timber for further processing.
Omkar's Board Edger Machine delivers reliable performance, accurate edge trimming, reduced material wastage, and long service life, making it an ideal choice for modern woodworking industries.
The machine is suitable for solid wood, timber planks, hardwood, softwood, and other wooden boards used in furniture, construction, and woodworking industries.
